Shan Motorsports HeX Sprayer Intercooler sprayer Kit

  • Sale
  • Regular price $250.00
Tax included. Shipping calculated at checkout.


Our HeX Sprayer consists of a quad nozzle water rail that when fed with a pressurised water feed, sprays a mist of water that cools the surface of an intercooler or any heat exchanger.

Wide Spray Pattern

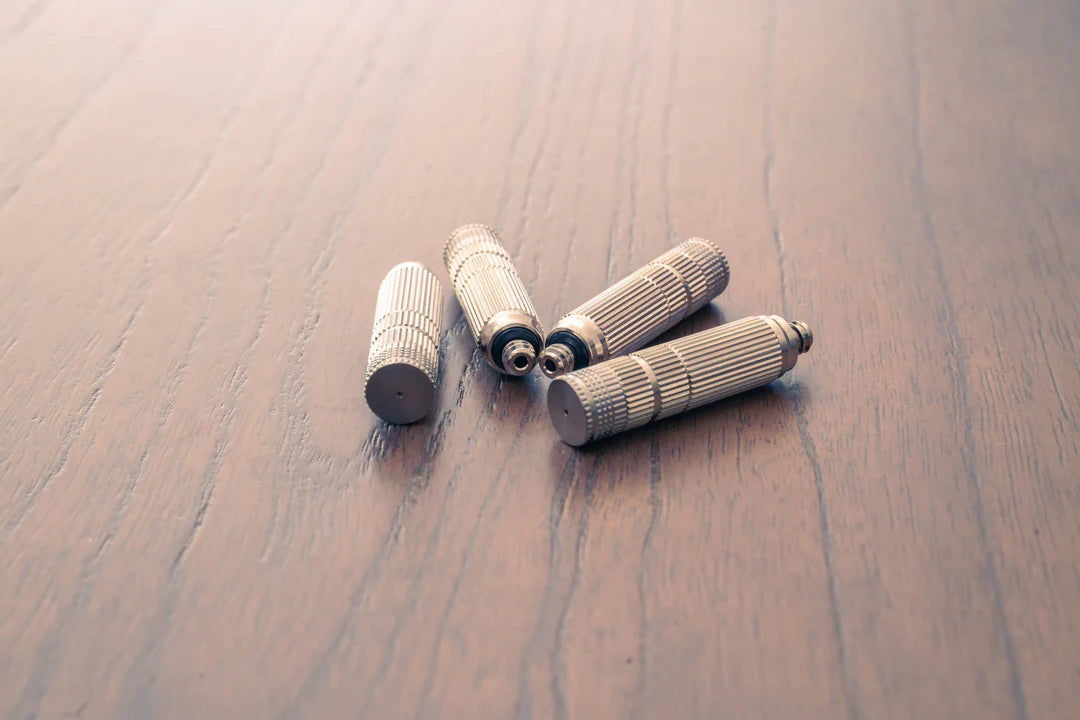

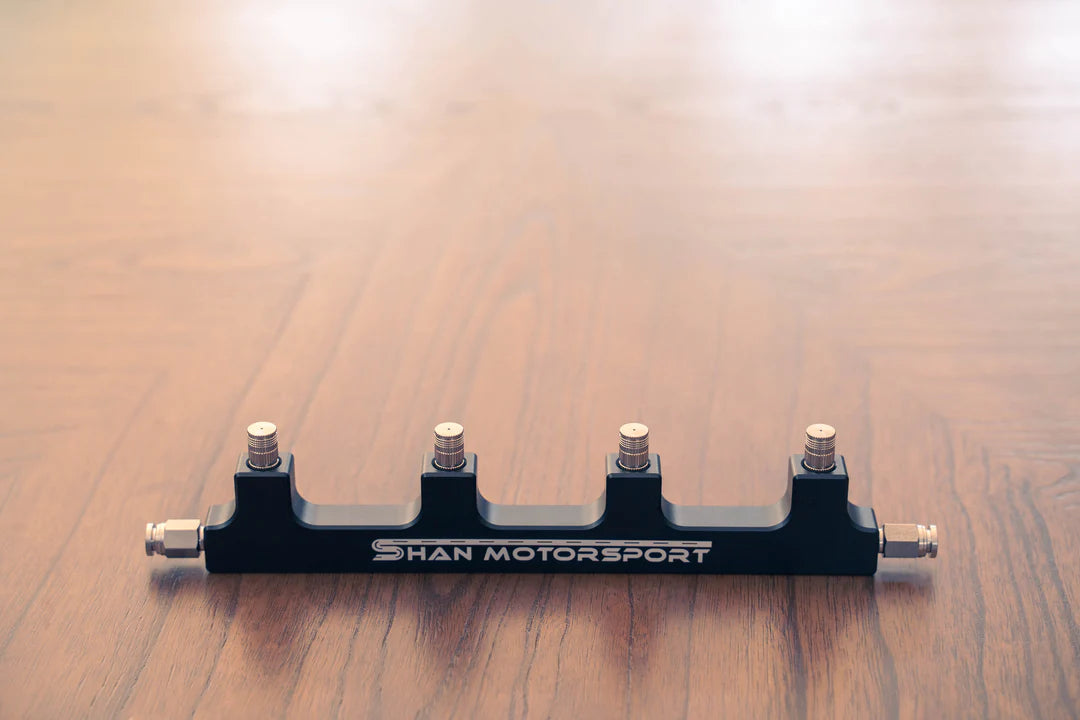

The rail contains four misting nozzles, each with a spray angle of 90-100°, allowing for wide coverage, making it suitable for both smaller OEM and wider aftermarket intercoolers and heat exchangers.

Compact in Size

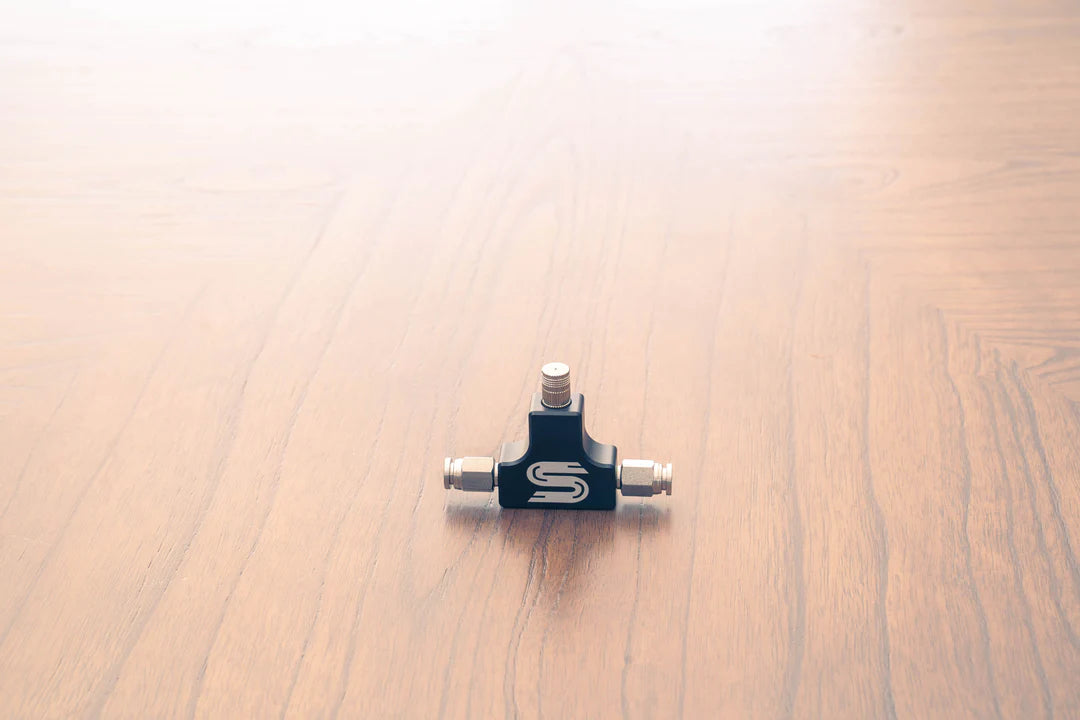

With 2 different variants, single and quad nozzle bodies, our HeX Sprayer can be fitted in compact areas with tight space constraints.

Expandability

You can daisy chain multiple HeX Sprayer rails together by purchasing an intermediate rail. Allowing you to run multiple rails to cool different heat exchangers in your car, like an intercooler and oil cooler.

High Atomisation

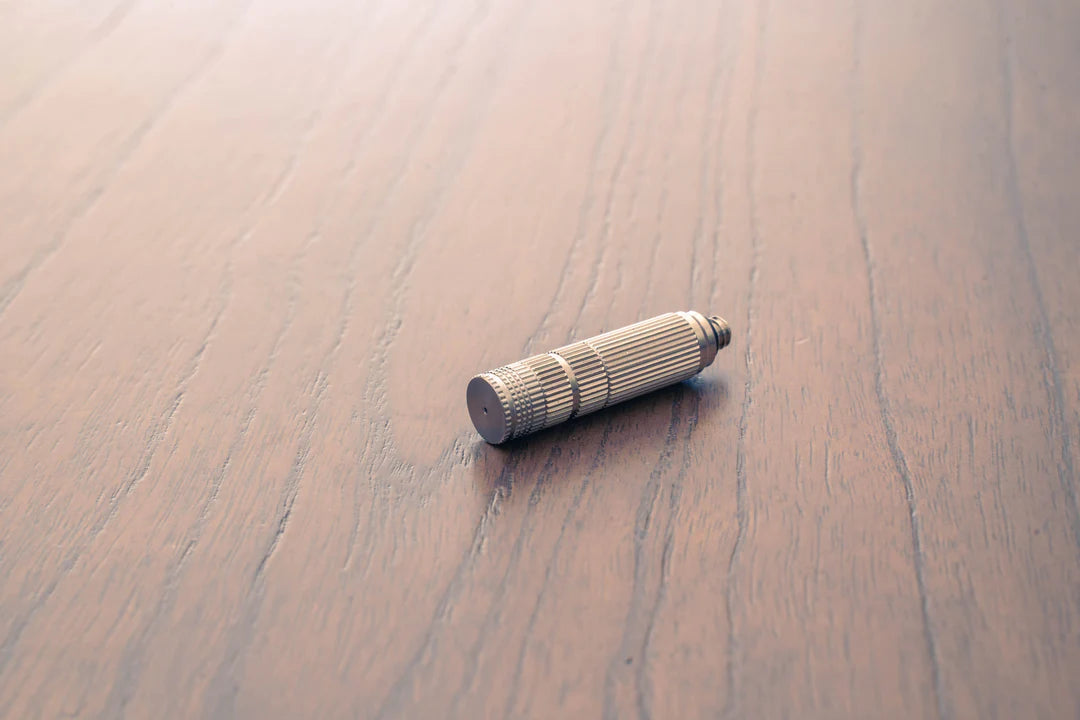

Our high pressure pump allows for a highly atomised mist, allowing a faster rate of evaporation, leading to faster drops in temperature. Coupled with our 0.8mm nozzle that ensures there is enough water to dissipate large quantities of heat energy.

Minimise Drips

Each nozzle is equipped with an anti drip spring valve that opens and closes the nozzle under pressure. This improves pressure build up, and minimises water droplet formation on activation and leakage on deactivation.

High Efficiency

By utilising a balance of high pressure and carefully chosen nozzles, our system uses between 400-500 ml of liquid per minute (single rail system).

Trusted Reliability

Used and trusted by several individuals and race teams under street, and timed/competition conditions.

Every single component of our HeX sprayer has been through rigorous stress and field testing to ensure they can perform in even the harshest of conditions.

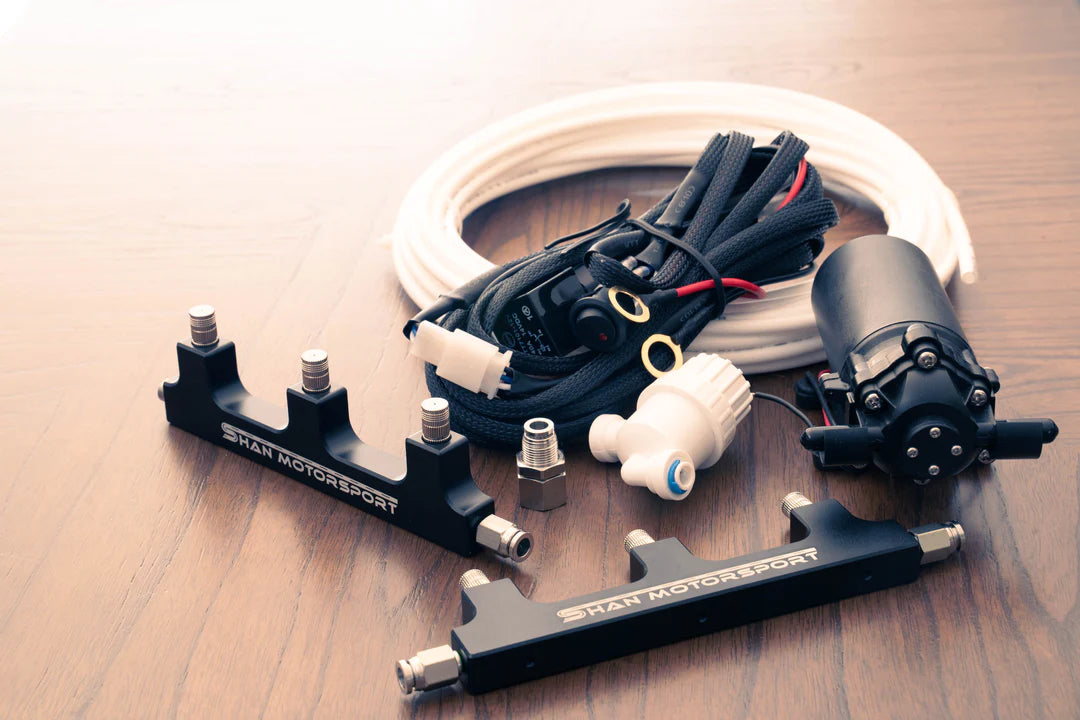

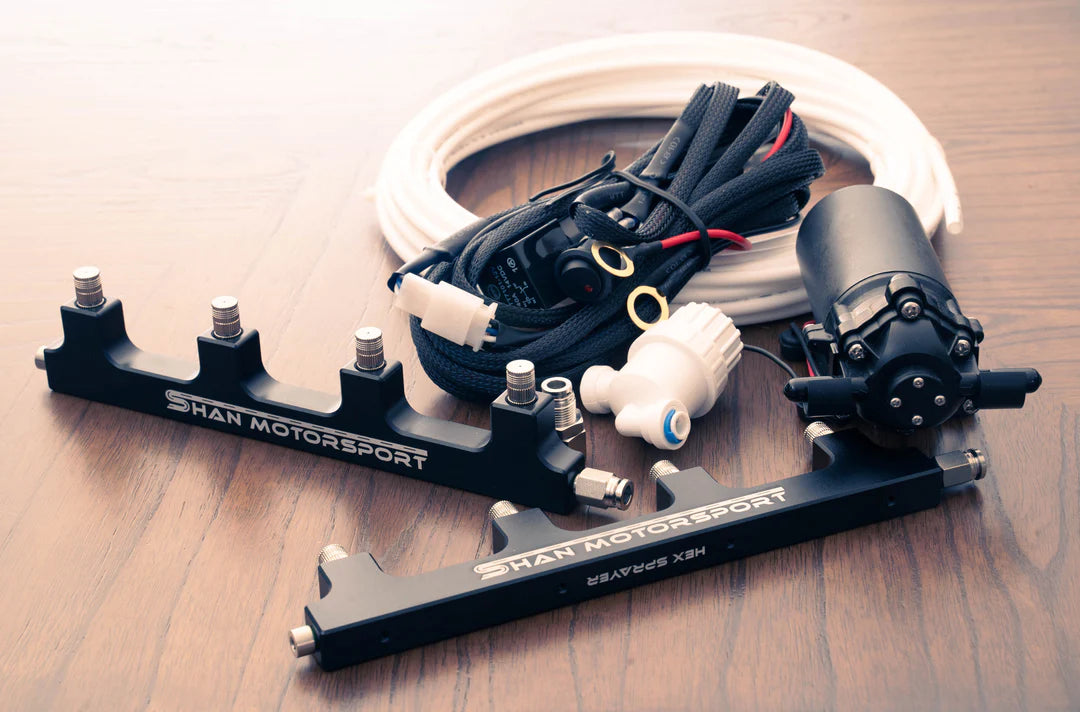

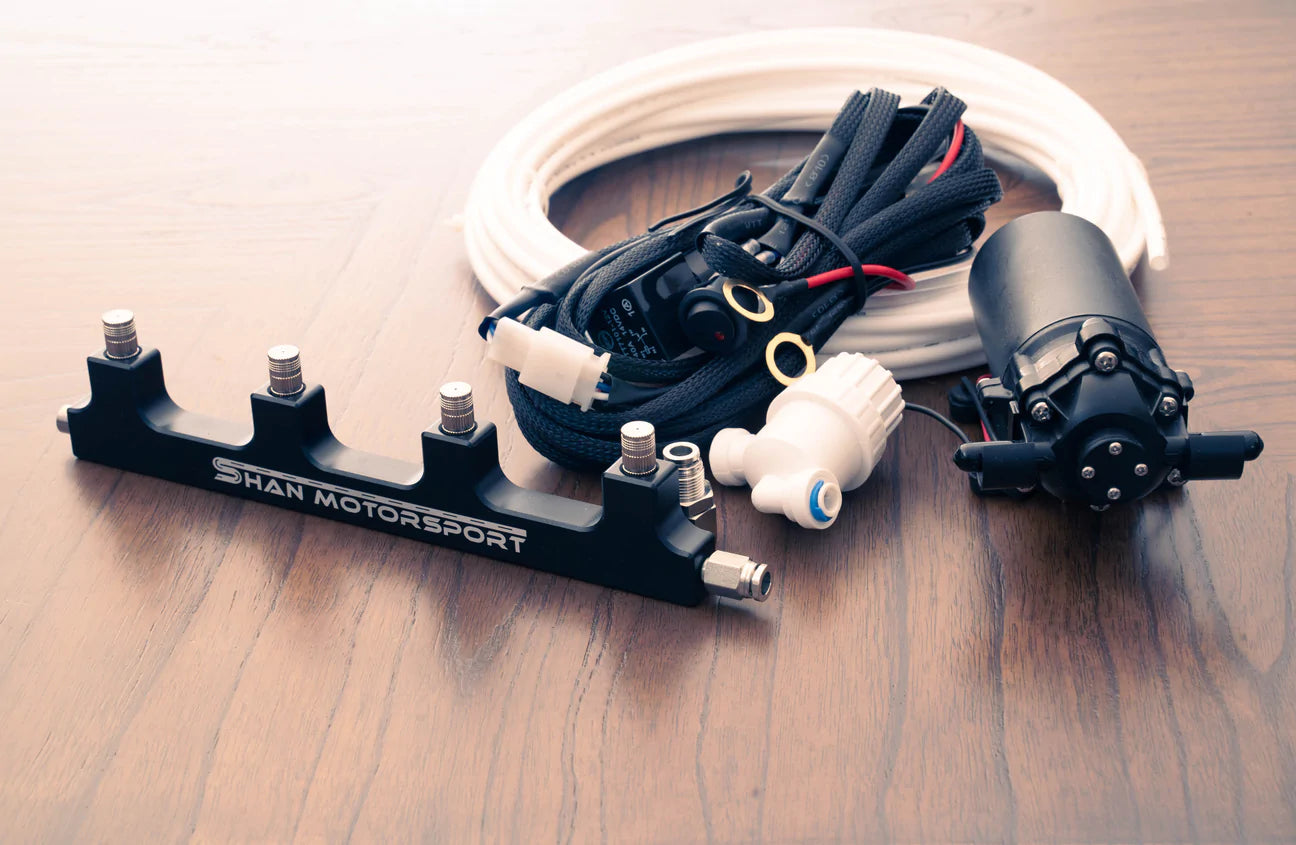

What's Included?

  • HeX Sprayer Rail
  • 12VDC Diaphragm Water Pump (Supplies up to 2-3 Rails)
  • Electrical Harness with Relay and Rocker Switch
  • High pressure tubing - 10 Meters
  • Bulkhead Fitting for External Tank
  • Inline filter (Tank - Pump)

    Installation

    Basic mechanical tools are required for installation. Specialised tooling may be necessary to remove panels and bumpers, consult your mechanic or service manual.

    The installation involves electrical work. Ensure that all necessary precautions are taken when making electrical connections. Electrical contact with water can cause fire and short circuiting, even with the presence of fuses and circuit breakers.

    A tank must be purchased separately.

    Professional installation is highly recommended.

    Installation Guide can be downloaded here

    Compatibility:

    All heat exchanger and intercooler equipped cars , trucks and motorbikes. Installation kit compatible with 12-14v electrical systems.

    Bulkhead fitting for water supply can be used on both plastic and metal tanks. An appropriate gasket or washer will be required to make a seal based on your chosen tank.

    PLEASE NOTE: ALL PARTS ARE SUBJECT TO AVAILABILITY unless stock level indicated on product page.
