Nuke Performance Air Jack Mounting options

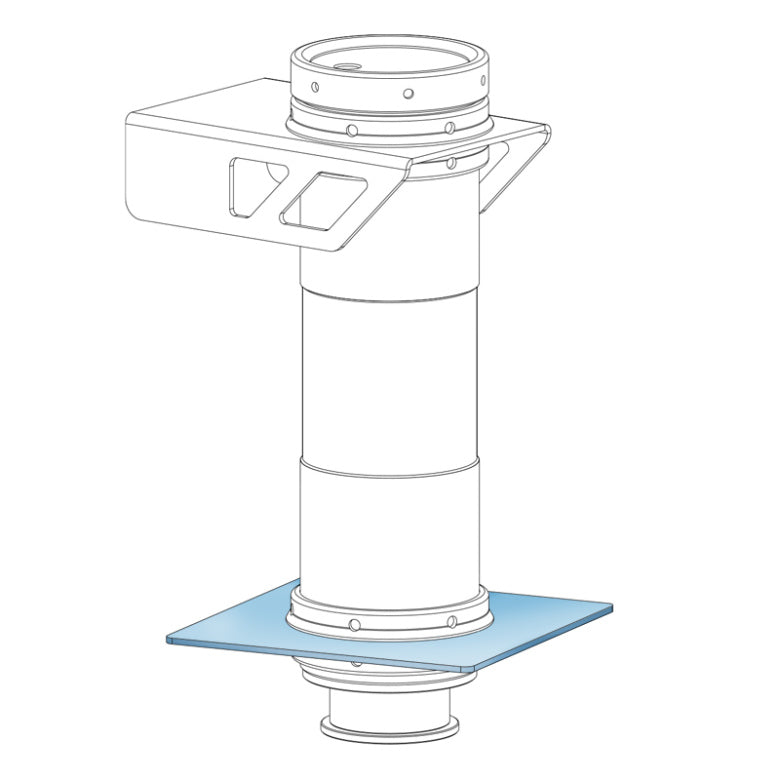

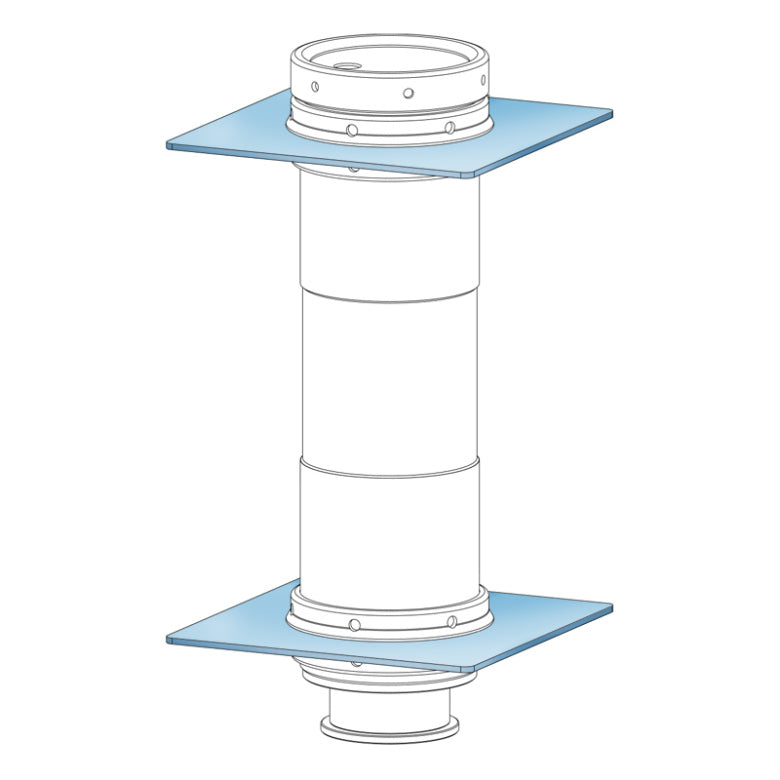

Flate Plate
Mounting accessories for mounting the Nuke Performance Air Jack 90 Competition. Enables easy installation thanks to correct dimensions.

Made of steel and intended to be welded to the body or chassis. Delivered untreated and ready to be applied. Adapt external dimensions to your needs and purposes.

Dimensions: 170x170mm (6.69x6.69")
Thickness : 3mm (0.12")
Hole Ø : 91mm (3.58")
Material : Steel

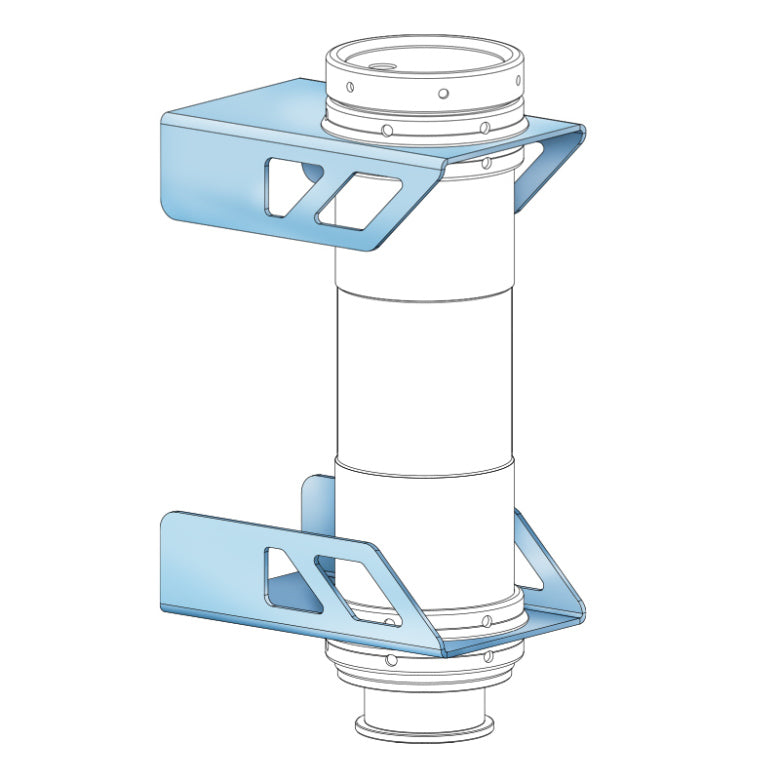

Bracket

Mounting accessories for mounting the Nuke Performance Air Jack 90 Competition. Enables easy installation thanks to correct dimensions.

Made of steel and intended to be welded to the body or chassis. Delivered untreated and ready to be applied. Adapt external dimensions to your needs and purposes. You can place one on top, one on the bottom, in combination with the plate and pipe or both. The possibilities are as many as there are builds and builders.

Dimensions: 180x116x53mm (7.08x4.56x2.09")
Thickness : 3mm (0.12")
Hole Ø : 91mm (3.58")
Material : Steel

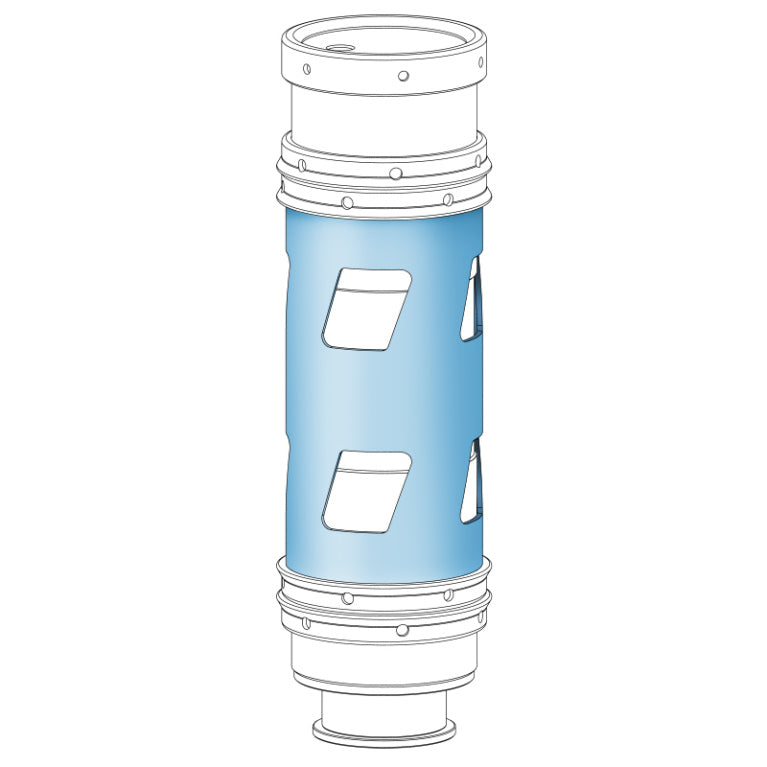

Tube

Mounting accessories for mounting the Nuke Performance Air Jack 90 Competition. Enables easy installation thanks to correct dimensions.

Made of steel and intended to be welded to the body or chassis. Delivered untreated and ready to be applied. Adapt external dimensions to your needs and purposes. You can use it as a solid piece, or you can cut it in half if you need a shorter pipe. If you shorten it, we recommend that you use the half-size pipe on one end and the steel bracket or steel plate on the other end. The possibilities are as many as there are builds and builders.

Length : 180mm (7.08")
Thickness : 2mm (0.08")
Outer Ø : 95mm (3.74")
Inner Ø : 91mm (3.58")
Material : Steel

OUT OF STOCK? No worries, a backorder is available.
Simply send us a message on the inquiry screen "here" and we can manually process your back order and supply time frames.
